Product Specifications

Performance Specifications

Overall Client Capacity

(Wireless & Wired)

200 clients

Wireless Client Capacity

Captive Portal

50

Hardware Specifications

CPU

4 cores, 1.7 GHz

Wireless Rate

2.4GHz: 574 Mbps, 5GHz: 2402 Mbps

Max. Transmit Power

2.4GHz: 25 dBm, 5GHz: 25 dBm

Port

4 * GE ports

Antenna

2 * 2.4GHz 5dBi high gain antennas

3 * 5GHz 5dBi high gain antennas

Power Adapter

DC 12V = 1.5A

Dimension

220 * 135 * 30 (mm)

Certification

CCC\FCC\CE\RoHs\SRRC

Environment

Operating temperature: 0 °C - 40 °C,

Operating humidity: 10% - 90% RH non-condensing

Storage temperature: -40 °C - 70 °C,

Storage humidity: 5% - 90% RH non-condensing

Software Specifications

Quick Setup Quick setup page upon the first login (Corresponding to the client type)

Internet Settings

1 WAN (default), 3 WAN (maximum)/PPPoE/Dynamic IP/Static IP/

PPPoE (Russia)/PPTP (Russia)/L2TP (Russia)

Wireless Settings

SSID and password/Network isolation/Wireless access control/Wireless

advanced settings/Guest network

Address Reservation

Quick address reservation for online clients/Manual address reservation

individually or in batches

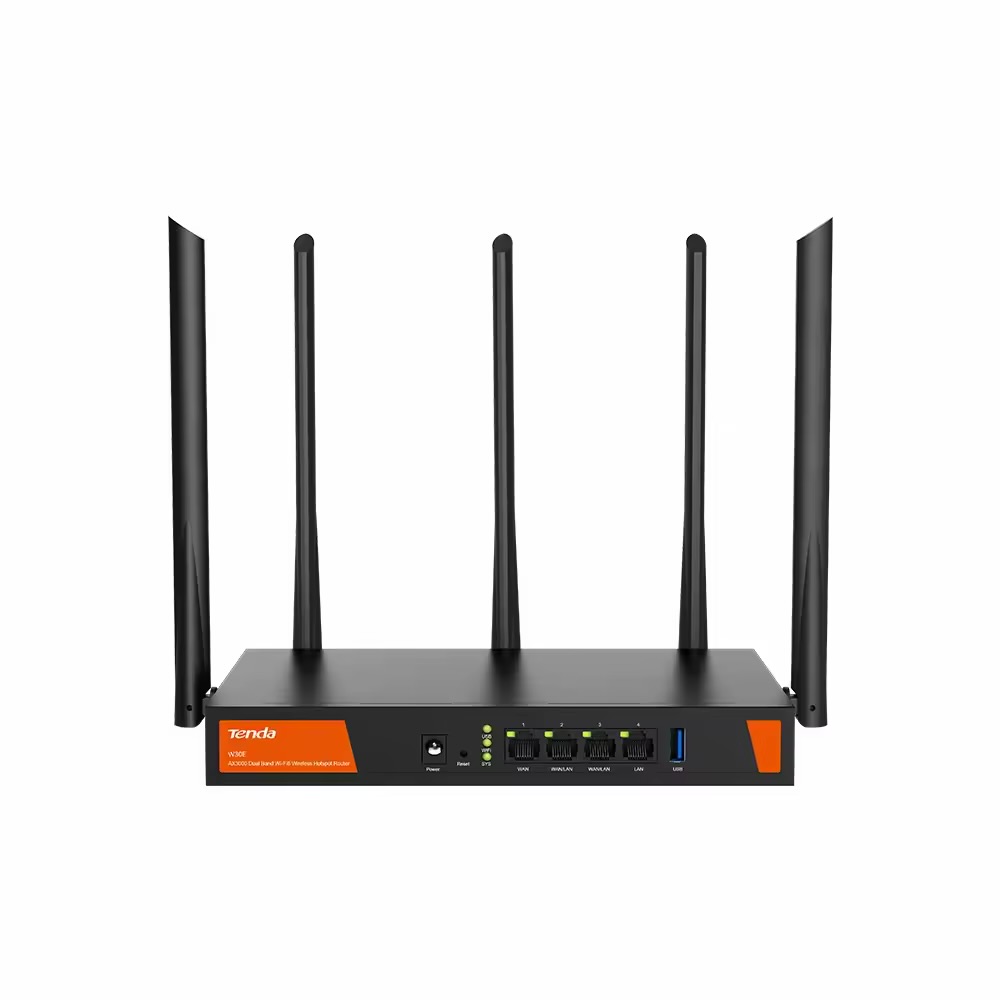

05W30E AX3000 Dual Band WiFi-6 Wireless Hotspot RouterProduct Specifications

Software Specifications

Bandwidth Control

No limit/Manual/Auto/Limit by group

File Sharing

Supports sharing files in USB devices within the LAN

Filter Management

MAC address, IP address, port, URL filter/Internet log storage

Authentication

Captive portal (one-key, local user, Email, WiFi via SMS)

More Settings

LAN settings/Remote WEB management/Port forwarding/Multi-WAN policy/

Port mirroring/UPnP/DDNS/DMZ host/Any IP (Hotel Mode)/IP attack defense/

VPN server/VPN client/IPSec/IPV6/DDNS

System Maintenance

Reboot/Upgrade/Reset/Password manager/Reboot schedule/Backup or

restore/System log/Diagnostic tool/System time/Function center

System Status Network topology/Traffic statistics/Status chart

06W30E AX3000 Dual Band WiFi-6 Wireless Hotspot Router
